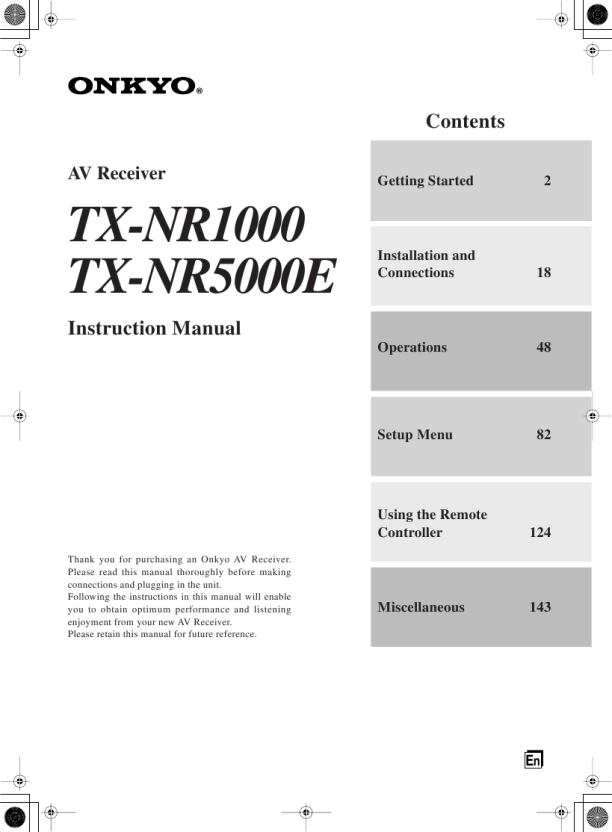

ONKYO TXNR5000E
Instrukcja Obsługi

Listening Mode Setup�Continued
B: Outputs the source only from the subwoofer connected to the SUBWOOFER PRE OUT B terminal. A+B: Outputs the source from the subwoofers connected to the SUBWOOFER PRE OUT A and SUBWOOFER PRE OUT B terminals. Not Used: No subwoofers are used for playback. A+B: Outputs the source from the speakers connected to the FRONT L/R SPEAKERS A and FRONT L/R SPEAKERS B terminals. Note that this option is not available when the front speakers are in Bi-amp or in BTL con�guration. e. Center Speaker This option con�gures the center speaker to use when playing the source. Select the speaker terminal to which the speaker you want to use is connected. This setting can be made when the �(Speaker B) Center� is set to �Main A� in the Speaker Con�guration sub-menu. � When the impedance setting for �Center A� or �Center B� in the Speaker Impedance sub-menu is set to �6 ohms� or �4 ohms,� the available options will be �A� and �B.� A (Default): Outputs the source from the speaker connected to the CENTER SPEAKERS A terminal. B: Outputs the source from the speaker connected to the CENTER SPEAKERS B terminal. A+B: Outputs the source from the speakers connected to the CENTER SPEAKERS A and CENTER SPEAKERS B terminals. f. Surr L/R Sp This option con�gures the surround speakers to use when playing the source. Select the speaker terminals to which the speakers you want to use are connected. This setting can be made when the �(Speaker B) Surr L/R� is set to �Main A� in the Speaker Con�guration sub-menu. � When the impedance setting for �Surr L/R A� or �Surr L/R B� in the Speaker Impedance sub-menu is set to �6 ohms� or �4 ohms,� the available options will be �A� and �B.� A (Default): Outputs the source from the speakers connected to the SURR L/R SPEAKERS A terminals. B: Outputs the source from the speakers connected to the SURR L/R SPEAKERS B terminals. A+B: Outputs the source from the speakers connected to the SURR L/R SPEAKERS A and SURR L/R SPEAKERS B terminals. g. Surr Bk Speaker This option con�gures the surround back speakers to use when playing the source. Select the speaker terminals to which the speakers you want to use are connected. This setting can be made when the �(Speaker B) Surr Back� is set to �Main A� in the Speaker Con�guration sub-menu. However, when the �(Speaker A) Surr Back� is set to �BTL for Front,� �Bi-Amp for Front,� or �Not Used,� this setting will not be displayed. � When the impedance setting for �Surr L/R A� or �Surr L/R B� in the Speaker Impedance sub-menu is set to �6 ohms� or �4 ohms,� the available options will be �A� and �B.�

Mono Movie Setup/Enhance Setup/ Orchestra Setup/Unplugged Setup/ Studio-Mix Setup/TV Logic Setup Sub-menu
This sub-menu allows you to con�gure the audio effect and playback options when you play a source in the Onkyo original listening mode. The settings in this submenu can be made when the (Speaker A) Surr L/R setting is set to an option other than �Not Used� in the Speaker Con�guration sub-menu. a. Front Effect This option allows you to turn off the reverb for the front speakers. This is useful when playing live material that already contains live reverberation as the added reverb simply blurs the original sound. When the Front Effect is turned off, no reverb is added to the front left, front right, and center speakers and the original reverberation can be heard as it is. On (Default): The Front Effect is turned on and the reverb is added. Off: The Front Effect is turned off. b. Reverb Level This option allows you to adjust the amount of reverb to suit your listening environment, source material, and so on. The available settings are Small, Mid, and Large. The option defaults to �Mid.� c. Reverb Time This option allows you to adjust the reverb time to suit your listening environment, source material, and so on. The available settings are Short, Mid, and Long. The option defaults to �Mid.� d. Front Speaker This option con�gures the front speakers to use when playing the source. Select the speaker terminals to which the speakers you want to use are connected. This setting can be made when the �(Speaker B) Front L/R� is set to �Main A� in the Speaker Con�guration submenu. � When the impedance setting for �Front L/R A� or �Front L/R B� in the Speaker Impedance sub-menu is set to �6 ohms� or �4 ohms,� the available options will be �A� and �B.� A (Default): Outputs the source from the speakers connected to the FRONT L/R SPEAKERS A terminals. B: Outputs the source from the speakers connected to the FRONT L/R SPEAKERS B terminals.

114
