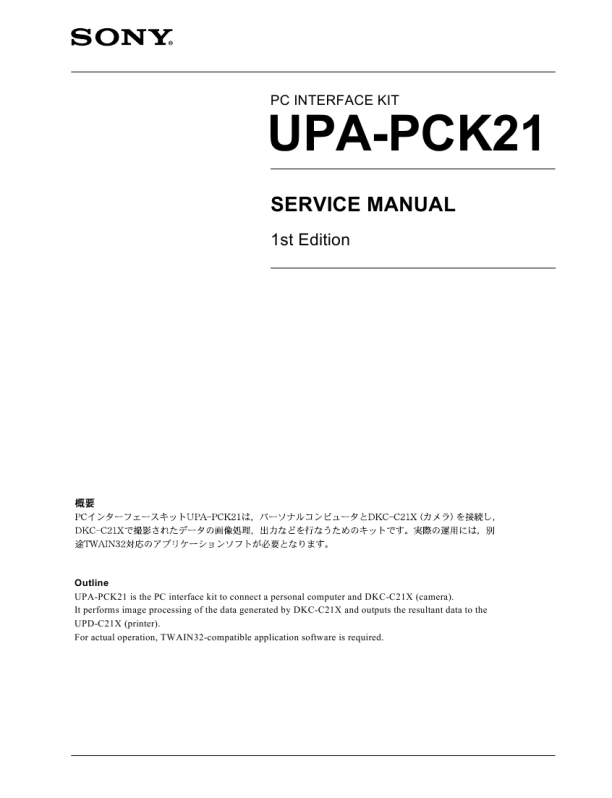

SONY UPA-PCK21
Instrukcja Serwisowa

1.

1.

Service Information

n Set the �PLAY/CAMERA� switch to �PLAY� on the Camera when using the TWAIN Driver. Incorrect action may occur if you set the switch to �CAMERA�.

2.
2-1.

Spare Parts

2.
2-1.

Spare Parts
Notes on Repair Parts

1. Safety Related Components Warning w Components marked ! are critical to safe operation. Therefore, specified parts should be used in the case of replacement. 2. Standardization of Parts Some repair parts supplied by Sony differ from those used for the unit. These are because of parts commonality and improvement. Parts list has the present standardized repair parts. 3. Stock of Parts Parts marked with �o� at SP (Supply Code) column of the spare parts list may not be stocked. Therefore, the delivery date will be delayed.

2-2.

Exploded Views and List

Part No.: 1-757-896-11 SP: s Description: CORD, CONNECTION

Part No.: 1-792-659-11 SP: s Description: CORD, CONNECTION

Part No.: 3-205-385-02 SP: o Description: COMPACT DISK

UPA-PCK21 (W/W) J, E 9-955-283-01
