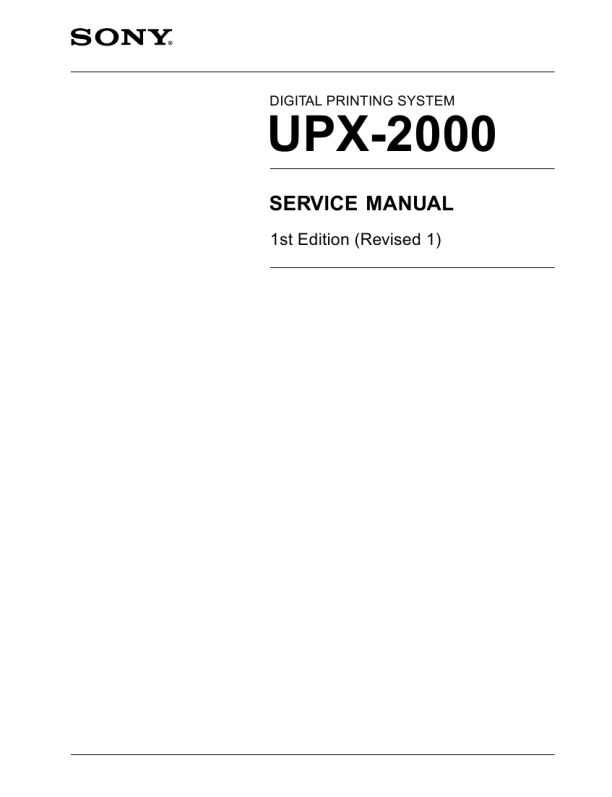

1-18 UPX-2000 (UC,CE)
Operation
1 2 3 4 5
Insert and fix a strobe to the strobe shoe of the camera. Connect the synchronization cord of the strobe to the FLASH jack of the camera. Set the FLASH switch of the camera to ON. Open the iris and adjust the frame and focus. Setting the iris ring to 1.4 may facilitate focusing.
Viewing a Picture
You can view pictures taken with the camera on the LCD.
2
CAMERA DISPLAY PLAY OFF ON OFF
H/S/
Adjust the iris of the lens according to the guide number (GN) of the strobe and the distance between the subject and the lens. For manual operation of the strobe: Set the iris referring to the chart below. For automatic operation of the strobe: Set the iris referring to the chart for automatic operation provided in the instruction manual for the strobe. In this case, the ISO number corresponding to this camera is ISO160. Press the release button on the camera.
3200 OFF SET
WB FLASH
3 1 2 3
MODE AUTO ON
1
6
Set the DISPLAY switch to ON. Set the PLAY/CAMERA/OFF switch to PLAY. A picture in memory appears on the LCD. Press Z or z of the mode button, and the picture before or after the current one appears.
About the strobe to be used � A strobe that only has a hot shoe cannot be used with this camera. � It is recommended to use a strobe with which iris setting around f-5.6 is possible. About the relationship between the GN of a strobe and the fstop of the iris, see �Setting of the iris (f-stop) according to the GN of a strobe.� � In a case of shooting with a higher f-stop (for example f-11), if the display on the LCD is too dark to monitor the subject, reduce the intensity of light from the strobe using a diffuser, and set the iris to a lower f-stop. � The color quality of a printout may differ depending on the strobe used. Adjust the color quality of a printout, if necessary, by menu operation (page 44). About the guide number � The guide number (GN) indicates the intensity of light to expect from a strobe. � The correlation among the GN, the distance between the lens and the subject, and the iris is expressed as follows: GN = f � d (f = iris setting, d = distance between the lens and the subject) Setting of the iris (f-stop) according to the GN of a strobe
Distance between lens and subject
Viewing a Nine-Picture Multiple Display
You can view nine pictures stored in camera�s memory on the screen at a time. It is also possible to select one from among them, and display it on a whole screen.
1 2 3
Set the DISPLAY switch to ON. Set the PLAY/CAMERA/OFF switch to PLAY. A picture in memory appears on the LCD. Press MODE of the mode button once. The MULTI mark appears on the LCD.
1.1 m 16 11 8 5.6
1.6 m 11 8 5.6 4
2.2 m 8 5.6 4 2.8
GN 14 10 7 5
4
Press � or � of the mode button. A nine-picture multiple display appears. Each time you press � or � of the mode button, the previous nine or next nine pictures will be displayed.
For example, when using a strobe with a GN of 14, and between the lens and the subject is 1.6 m, set the iris to 11.
