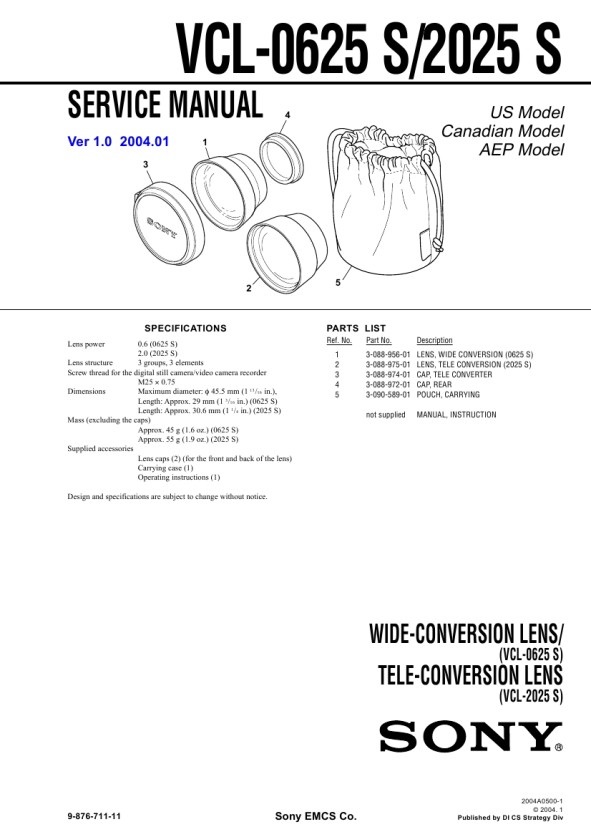

VCL-0625 S/2025 S
SERVICE MANUAL
Ver 1.0 2004.01
3 1 4
US Model Canadian Model AEP Model
2
5
SPECIFICATIONS
Lens power 0.6 (0625 S) 2.0 (2025 S) Lens structure 3 groups, 3 elements Screw thread for the digital still camera/video camera recorder M25 � 0.75 Dimensions Maximum diameter: � 45.5 mm (1 13/16 in.), Length: Approx. 29 mm (1 3/16 in.) (0625 S) Length: Approx. 30.6 mm (1 1/4 in.) (2025 S) Mass (excluding the caps) Approx. 45 g (1.6 oz.) (0625 S) Approx. 55 g (1.9 oz.) (2025 S) Supplied accessories Lens caps (2) (for the front and back of the lens) Carrying case (1) Operating instructions (1) Design and specifications are subject to change without notice.
PARTS LIST
Ref. No. 1 2 3 4 5 Part No. 3-088-956-01 3-088-975-01 3-088-974-01 3-088-972-01 3-090-589-01 not supplied Description LENS, WIDE CONVERSION (0625 S) LENS, TELE CONVERSION (2025 S) CAP, TELE CONVERTER CAP, REAR POUCH, CARRYING MANUAL, INSTRUCTION
