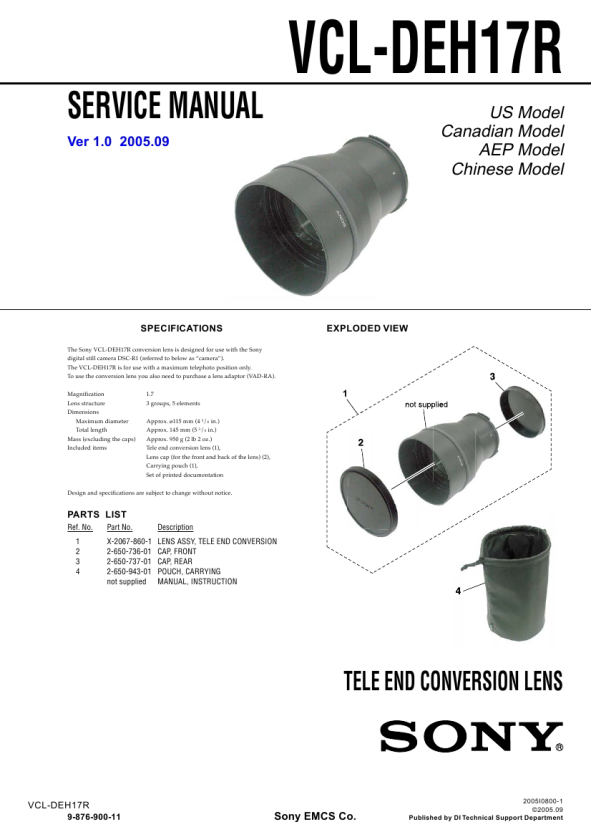

VCL-DEH17R
SERVICE MANUAL
Ver 1.0 2005.09
US Model Canadian Model AEP Model Chinese Model
SPECIFICATIONS
The Sony VCL-DEH17R conversion lens is designed for use with the Sony digital still camera DSC-R1 (referred to below as �camera�). The VCL-DEH17R is for use with a maximum telephoto position only. To use the conversion lens you also need to purchase a lens adaptor (VAD-RA). Magnification Lens structure Dimensions Maximum diameter Total length Mass (excluding the caps) Included items 1.7 3 groups, 5 elements Approx. ø115 mm (4 5/8 in.) Approx. 145 mm (5 3/4 in.) Approx. 950 g (2 lb 2 oz.) Tele end conversion lens (1), Lens cap (for the front and back of the lens) (2), Carrying pouch (1), Set of printed documentation
EXPLODED VIEW
1
Design and specifications are subject to change without notice.
PARTS LIST
Ref. No. 1 2 3 4 Part No. X-2067-860-1 2-650-736-01 2-650-737-01 2-650-943-01 not supplied Description LENS ASSY, TELE END CONVERSION CAP, FRONT CAP, REAR POUCH, CARRYING MANUAL, INSTRUCTION
