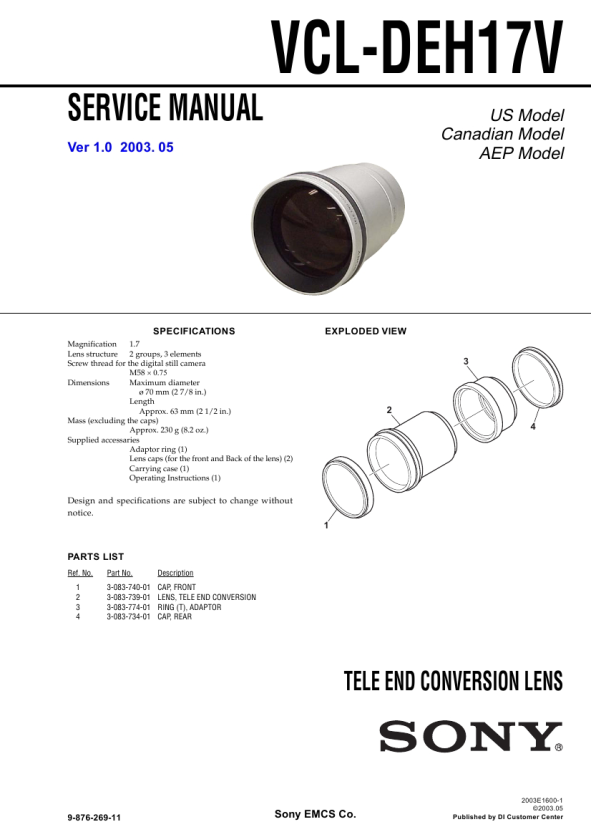

SONY VCLDEH17V
Instrukcja Serwisowa

VCL-DEH17V
SERVICE MANUAL
Ver 1.0 2003. 05

US Model Canadian Model AEP Model

SPECIFICATIONS
Magnification 1.7 Lens structure 2 groups, 3 elements Screw thread for the digital still camera M58 � 0.75 Dimensions Maximum diameter ø 70 mm (2 7/8 in.) Length Approx. 63 mm (2 1/2 in.) Mass (excluding the caps) Approx. 230 g (8.2 oz.) Supplied accessaries Adaptor ring (1) Lens caps (for the front and Back of the lens) (2) Carrying case (1) Operating Instructions (1)

EXPLODED VIEW

3

2 4

Design and specifications are subject to change without notice.

1
PARTS LIST
Ref. No. 1 2 3 4 Part No. 3-083-740-01 3-083-739-01 3-083-774-01 3-083-734-01 Description CAP, FRONT LENS, TELE END CONVERSION RING (T), ADAPTOR CAP, REAR

TELE END CONVERSION LENS

9-876-269-11

Sony EMCS Co.

2003E1600-1 ©2003.05 Published by DI Customer Center
