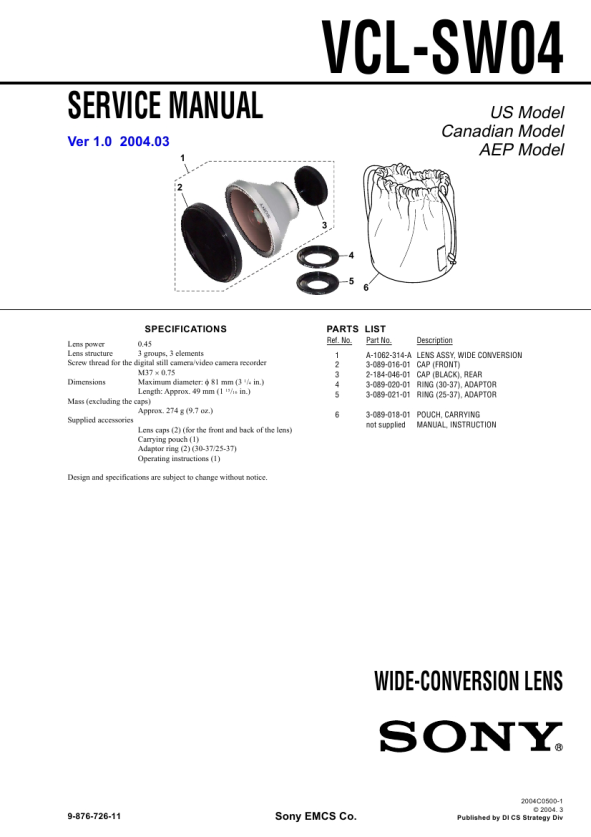

VCL-SW04
SERVICE MANUAL
Ver 1.0 2004.03
1 2
US Model Canadian Model AEP Model
3 4 5 6
SPECIFICATIONS
Lens power 0.45 Lens structure 3 groups, 3 elements Screw thread for the digital still camera/video camera recorder M37 � 0.75 Dimensions Maximum diameter: � 81 mm (3 1/4 in.) Length: Approx. 49 mm (1 15/16 in.) Mass (excluding the caps) Approx. 274 g (9.7 oz.) Supplied accessories Lens caps (2) (for the front and back of the lens) Carrying pouch (1) Adaptor ring (2) (30-37/25-37) Operating instructions (1) Design and specifications are subject to change without notice.
PARTS LIST
Ref. No. 1 2 3 4 5 6 Part No. A-1062-314-A 3-089-016-01 2-184-046-01 3-089-020-01 3-089-021-01 Description LENS ASSY, WIDE CONVERSION CAP (FRONT) CAP (BLACK), REAR RING (30-37), ADAPTOR RING (25-37), ADAPTOR
3-089-018-01 POUCH, CARRYING not supplied MANUAL, INSTRUCTION
WIDE-CONVERSION LENS
9-876-726-11
Sony EMCS Co.
2004C0500-1 © 2004. 3 Published by DI CS Strategy Div
|
