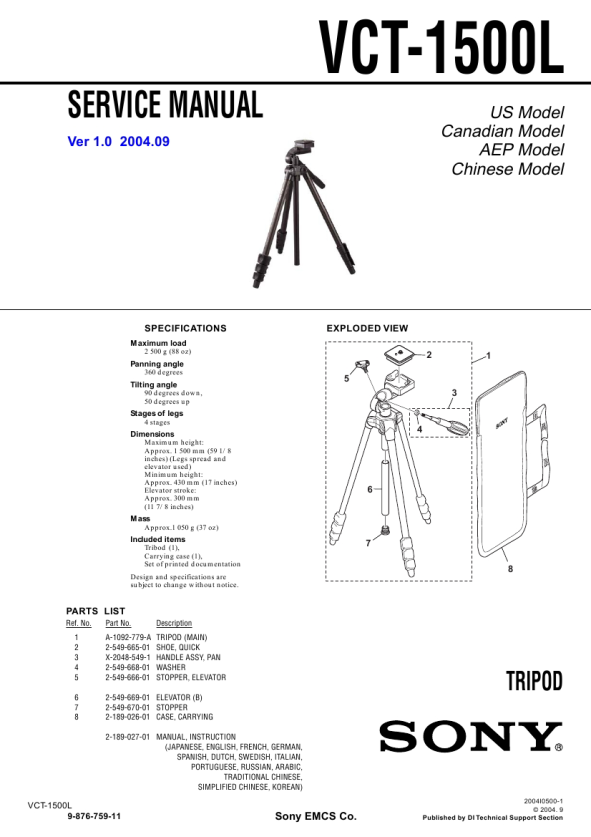

VCT-1500L
SERVICE MANUAL
Ver 1.0 2004.09

US Model Canadian Model AEP Model Chinese Model

SPECIFICATIONS
Maximum load
2 500 g (88 oz)

EXPLODED VIEW

2 5 3

1

Panning angle
360 degrees

Tilting angle
90 degrees down, 50 degrees up

Stages of legs
4 stages

Dimensions
Maximum height: Approx. 1 500 mm (59 1/8 inches) (Legs spread and elevator used) Minimum height: Approx. 430 mm (17 inches) Elevator stroke: Approx. 300 mm (11 7/8 inches)

4

6

Mass
Approx.1 050 g (37 oz)

Included items
Tribod (1), Carrying case (1), Set of printed documentation Design and specifications are subject to change without notice.

7 8

PARTS LIST
Ref. No. 1 2 3 4 5 6 7 8 Part No. A-1092-779-A 2-549-665-01 X-2048-549-1 2-549-668-01 2-549-666-01 Description TRIPOD (MAIN) SHOE, QUICK HANDLE ASSY, PAN WASHER STOPPER, ELEVATOR

TRIPOD

2-549-669-01 ELEVATOR (B) 2-549-670-01 STOPPER 2-189-026-01 CASE, CARRYING 2-189-027-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, RUSSIAN, ARABIC, TRADITIONAL CHINESE, SIMPLIFIED CHINESE, KOREAN)

VCT-1500L 9-876-759-11

2004I0500-1 © 2004. 9

Sony EMCS Co.

Published by DI Technical Support Section
