VF-30CPKX S

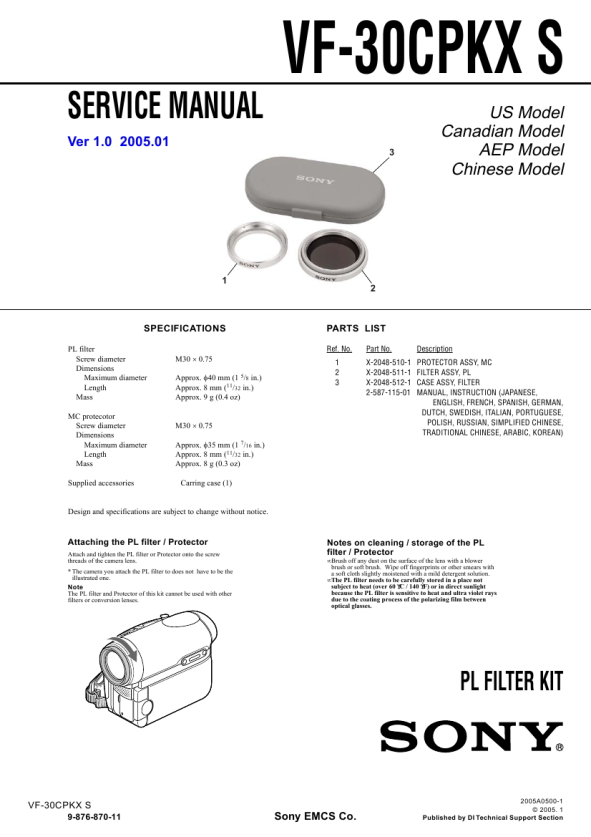

SERVICE MANUAL
Ver 1.0 2005.01
3

US Model Canadian Model AEP Model Chinese Model

1

2

SPECIFICATIONS
PL filter Screw diameter Dimensions Maximum diameter Length Mass MC protecotor Screw diameter Dimensions Maximum diameter Length Mass Supplied accessories M30 � 0.75 Approx. �40 mm (1 /8 in.) Approx. 8 mm (11/32 in.) Approx. 9 g (0.4 oz) M30 � 0.75 Approx. �35 mm (1 in.) Approx. 8 mm (11/32 in.) Approx. 8 g (0.3 oz) Carring case (1)
7/16 5

PARTS LIST
Ref. No. 1 2 3 Part No. X-2048-510-1 X-2048-511-1 X-2048-512-1 2-587-115-01 Description PROTECTOR ASSY, MC FILTER ASSY, PL CASE ASSY, FILTER MANUAL, INSTRUCTION (JAPANESE, ENGLISH, FRENCH, SPANISH, GERMAN, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, POLISH, RUSSIAN, SIMPLIFIED CHINESE, TRADITIONAL CHINESE, ARABIC, KOREAN)

Design and specifications are subject to change without notice.

Attaching the PL filter / Protector
Attach and tighten the PL filter or Protector onto the screw threads of the camera lens. * The camera you attach the PL filter to does not have to be the illustrated one.

Notes on cleaning / storage of the PL filter / Protector
� Brush off any dust on the surface of the lens with a blower brush or soft brush. Wipe off fingerprints or other smears with a soft cloth slightly moistened with a mild detergent solution. � The PL filter needs to be carefully stored in a place not subject to heat (over 60 °C / 140 °F) or in direct sunlight because the PL filter is sensitive to heat and ultra violet rays due to the coating process of the polarizing film between optical glasses.

Note
The PL filter and Protector of this kit cannot be used with other filters or conversion lenses.

PL FILTER KIT

VF-30CPKX S
9-876-870-11

Sony EMCS Co.

2005A0500-1 © 2005. 1 Published by DI Technical Support Section
