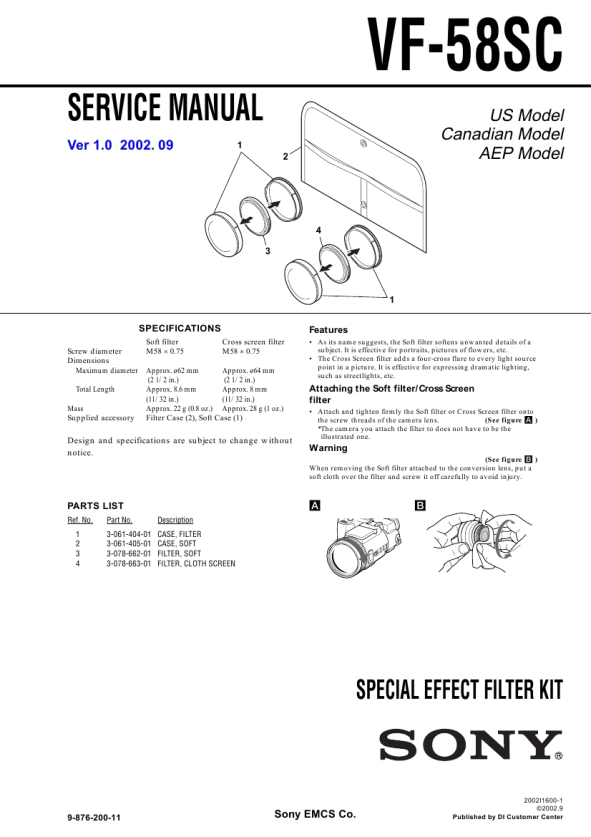

VF-58SC
SERVICE MANUAL
Ver 1.0 2002. 09
1 2
US Model Canadian Model AEP Model
4 3
1
SPECIFICATIONS
Screw diameter Dimensions Maximum diameter Total Length Mass Supplied accessory Soft filter M58 � 0.75 Approx. ø62 mm Cross screen filter M58 � 0.75 Approx. ø64 mm
Features
� As its name suggests, the Soft filter softens unwanted details of a subject. It is effective for portraits, pictures of flowers, etc. � The Cross Screen filter adds a four-cross flare to every light source point in a picture. It is effective for expressing dramatic lighting, such as streetlights, etc.
(2 1/2 in.) (2 1/2 in.) Approx. 8.6 mm Approx. 8 mm (11/32 in.) (11/32 in.) Approx. 22 g (0.8 oz.) Approx. 28 g (1 oz.) Filter Case (2), Soft Case (1)
Attaching the Soft filter/Cross Screen filter
� Attach and tighten firmly the Soft filter or Cross Screen filter onto the screw threads of the camera lens. (See figure A ) *The camera you attach the filter to does not have to be the illustrated one.
Design and specifications are subject to change without notice.
Warning
(See figure B ) When removing the Soft filter attached to the conversion lens, put a soft cloth over the filter and screw it off carefully to avoid injury.
PARTS LIST
Ref. No. 1 2 3 4 Part No. 3-061-404-01 3-061-405-01 3-078-662-01 3-078-663-01 Description CASE, FILTER CASE, SOFT FILTER, SOFT FILTER, CLOTH SCREEN
A
B
SPECIAL EFFECT FILTER KIT
9-876-200-11
Sony EMCS Co.
2002I1600-1 ©2002.9 Published by DI Customer Center
|
|
|
> |
|
