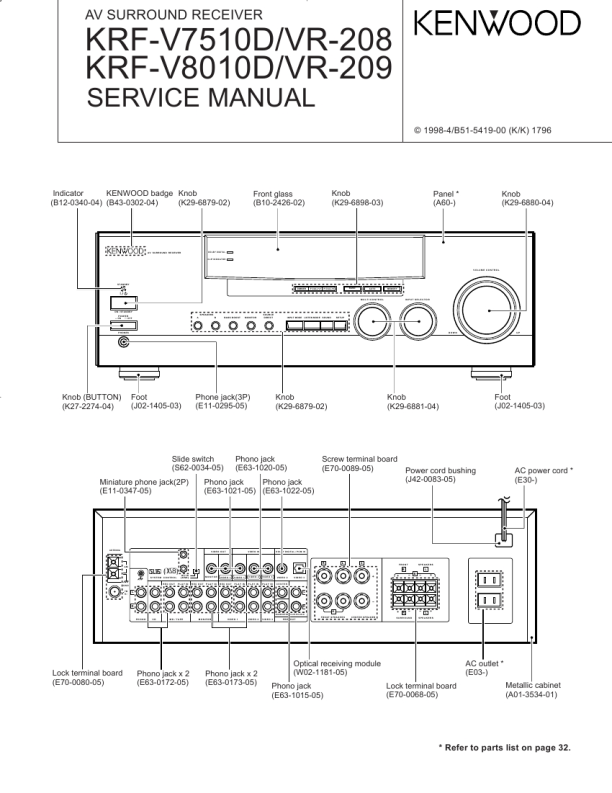

KRF-V7510D/V8010D/VR-208/209
CONTROLS
1 2 3
POWER
MACRO
SHIFT
AUDIO VIDEO TV
0 ! @
P. CALL
8 6 7
BAND
P. CALL
4
4
¢
5 6 7 8 9
REC
GUIDE
TUNING/SKIP MUTE
VOLUME
# $ % ^ & *
SUBWOOFER
LISTEN MODE
SOUND
FUNCTION SHIFT MENU THEME
SETUP FAV
1
TV/SAT/VID +100
2
INFO REPEAT
3
ALT AUD RANDOM
4 7
5 8 0
6 9
DISPLAY +10 ENT
There are some cases in which keys (or knobs) that have the same function on the receiver and on the remote control have different names. In the instructions of this manual, if the names of corresponding keys (or knobs) on the receiver and remote control are different, the name of the remote control key is indicated in parentheses.
1 POWER key Use to turn the receiver on and off. Use in combination with the input selector (AUDIO, VIDEO, or TV) keys and SHIFT key to turn various components on and off. 2 MACRO key Use in combination with the AUDIO, VIDEO, or TV keys to execute a series of commands automatically (MACRO PLAY). 3 VIDEO selector key Selects the video inputs and sets the remote control to operate the component registered at the respective input. 4 Multi control keys Use to operate the selected component. 5 REC key Use to operate the selected component. 6 TUNING/SKIP key Use during the setup procedure to specify various settings. Use to operate the tuner or selected component. 7 SUBWOOFER key Use in combination with the VOLUME +/� keys to adjust the volume of the subwoofer.
8 FUNCTION SHIFT key Use in combination with the numeric keys to execute alternate commands. 9 Numeric keys Provide functions identical to those of the original remote control supplied with the component you are controlling. To access the functions printed above the keys, press within 3 seconds of pressing the FUNCTION SHIFT key. Function availability varies for each component. 0 SHIFT key Use in combination with the AUDIO and VIDEO keys to change the remote control mode without changing the input selector or in combination with the POWER key to turn on and off components programmed into the remote control. ! TV selector key Sets the remote control to operate a TV or cable box. This key does not change the input selector on the receiver.
@ AUDIO selector key Selects the audio inputs and sets the remote control to operate the respective KENWOOD audio component. If you connect audio components from KENWOOD and other makers to the MD/ TAPE or CD jacks, you can set the remote control to operate these components by registering the appropriate setup code at the respective input. # GUIDE key Use to activate the OSD menu functions of registered components. $ VOLUME key Use to adjust the receiver volume. % MUTE key Use to temporarily mute the sound. ^ SOUND key Use to adjust the sound quality and ambience effects. & LISTEN MODE key Use to select the listening mode. * SETUP key Use to select the surround sound settings.
