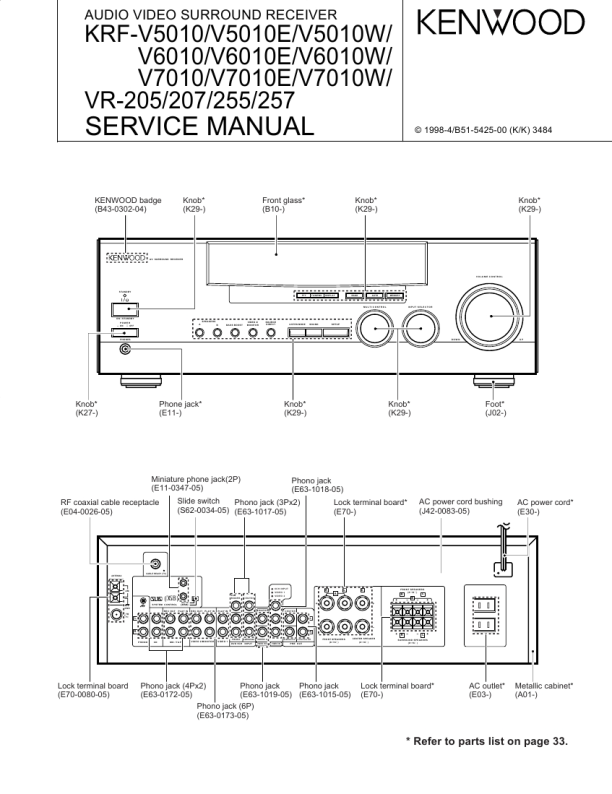

KRF-V5010/V6010/V7010/VR-205/206/207/255/257
DISASSEMBLY FOR REPAIR
3 (VR-257) 1 x2
2 2 x2 3 x3
4
4
1. Remove the 9 screws (1,2,3), remove the rear panel. 2. Connect the GND of the rear panel and the chassis, the GND of the mounting hardware and the chassis with 2 alligators clip (4)
4
5
|
