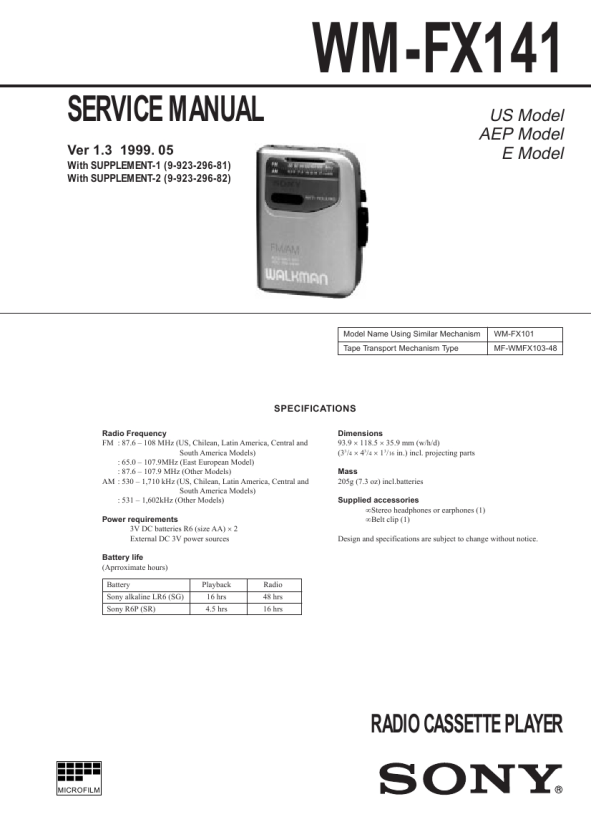

SONY WMFX141
Instrukcja Serwisowa

2-3.

MAIN BOARD
1 head flexible board

3 MAIN board

2 claws

2-4.

CASSETTE LID

B

A

2 Release the catch B.

1 Release the catch A.

Front cabinet

3 Cassette lid (Remove it in the direction of the arrow)

2-5.

DIAL POINTER SETTING
2 Align pointer with arrow marked side as shown in Fig.1 and then fit to groove in the order of A and B.

Pointer
A B

Align Pointer Fig. 1

1 Rotate tune knob fully to arrow direction.

�5�
