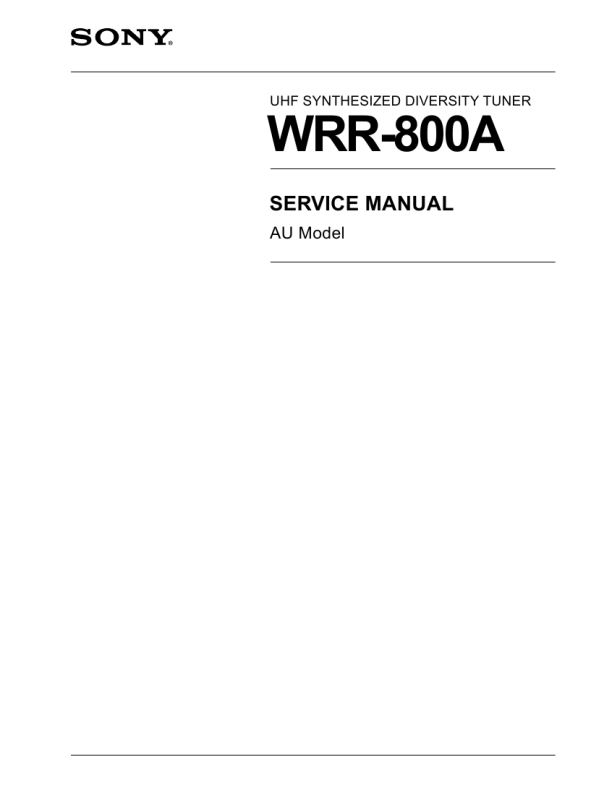

SONY WRR-800A
Instrukcja Serwisowa

(12)Connect the signal generator to the ANTENNA A connector with DC cut fixture. Set the FREQUENCY (carrier frequency) of the signal generator as follow. FREQUENCY (carrier frequency): 800.000 MHz (13)Check first that indication �L� of �AC2L� on the LCD has disappeared, and then press the �SET� button on the front panel. (14)Indication on the LCD appears as follows: LCD:

(21)Connect the signal generator to the ANTENNA B IN connector with DC cut fixture. (22)Check first that indication �L� of �BC3L� on the LCD has disappeared, and then press the �SET� button on the front panel. (23)Indication on the LCD appears as follows: LCD:

U68
(U68)

B C2 L
(B C2 L)

Adjustment is completed. (Normal operation mode)

(15)Connect the signal generator to the ANTENNA B IN connector with DC cut fixture. (16)Check first that indication �L� of �BC2L� on the LCD has disappeared, and then press the �SET� button on the front panel. (17)Indication on the LCD appears as follows: LCD:

A C3 L
(A C3 L)

(18)Connect the signal generator to the ANTENNA A connector with DC cut fixture. Set the FREQUENCY (carrier frequency) of the signal generator as follow. FREQUENCY (carrier frequency): 804.000 MHz (19)Check first that indication �L� of �AC3L� on the LCD has disappeared, and then press the �SET� button on the front panel. (20)Indication on the LCD appears as follows: LCD:

B C3 L
(B C3 L)

3-4

WRR-800A
