Front
Center

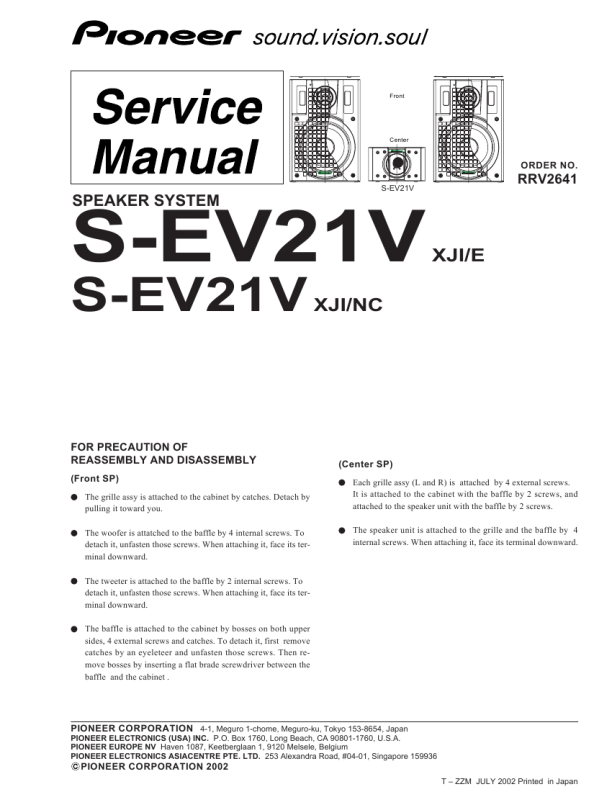

ORDER NO.
S-EV21V
RRV2641
SPEAKER SYSTEM
S-EV21V
S-EV21V
XJI/NC
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
(Front SP)
The grille assy is attached to the cabinet by catches. Detach by pulling it toward you. The woofer is attatched to the baffle by 4 internal screws. To detach it, unfasten those screws. When attaching it, face its terminal downward. The tweeter is attached to the baffle by 2 internal screws. To detach it, unfasten those screws. When attaching it, face its terminal downward. The baffle is attached to the cabinet by bosses on both upper sides, 4 external screws and catches. To detach it, first remove catches by an eyeleteer and unfasten those screws. Then remove bosses by inserting a flat brade screwdriver between the baffle and the cabinet .
XJI/E
(Center SP)
Each grille assy (L and R) is attached by 4 external screws. It is attached to the cabinet with the baffle by 2 screws, and attached to the speaker unit with the baffle by 2 screws. The speaker unit is attached to the grille and the baffle by 4 internal screws. When attaching it, face its terminal downward.
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2002
T � ZZM JULY 2002 Printed in Japan
|
