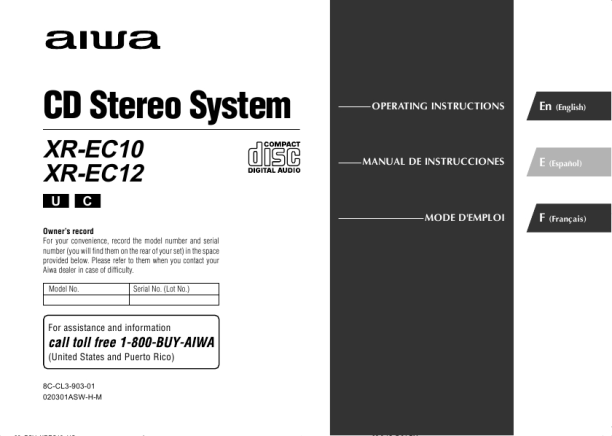

AIWA XREC10
Instrukcja Obsługi

Timer playback
Turns on the unit at a specified time for the specified duration. Make sure the clock is set correctly.
1 Press TIMER on the remote control. 2 Within 12 seconds, press SET. 3 Press f or g to set the timer-on time, and
press SET. Each press changes the time in 1-minute steps. Holding these buttons down will vary the time in 10-minute units.
"5" lights up and "5 PLAY" is displayed.

7 Prepare the source.
To play CD, load a disc. The currently selected disc is played. If you want to play a CD on another tray, play the desired CD, and then stop play. To play the radio, select the band and tune in the desired station. To play external equipment connected to the LINE IN jacks, set an external timer for the equipment so that its playback begins at the same time.

To check the timer setting Press TIMER on the remote control so that "5 PLAY" appears on the display. After 6 seconds, the timer-on time, the source and the timeractivated duration are displayed for 6 seconds. To change the timer setting Reset the timer again. To cancel the timer Press TIMER on the remote control twice until "5 OFF" is displayed. "5" disappears from the display. Tip: Your timer setting is retained even if the timer is cancelled. Next time the timer is activated, you can change your previous setting, or simply use the same setting again.

En

8 Press POWER 6STANDBY/ON (POWER) to turn the unit off.
"5" remains on the display to indicate the timer standby mode (when ECO mode is deactivated). At timer-on time, the unit turns on and plays the selected source. After the specified timer-activated duration, the unit turns off again. �Timer playback will not begin unless the unit is turned off first. �Connected equipment cannot be turned on or off by the builtin timer of this unit. Use an external timer.

4 Press f or g (TUNER/BAND, AUX or E CD) to select the source, and press SET.
�For timer play of a CD, select "CD". �For timer play of a radio broadcast, select "TUNER". You will select the band later in step 7. �For timer play of the equipment connected to the LINE IN jacks, select "AUX (VIDEO or TV)".

5 Press f or g to set the timer-activated duration, then press SET.
With each press, the timer-activated duration changes in 5-minute steps between 5 to 240 minutes.

6 Press f or g (turn VOLUME on the main unit, or press VOLUME -,+ on the remote control) to adjust the volume for timer playback, and press SET.
The volume level can be adjusted from 0 to 24.

13
