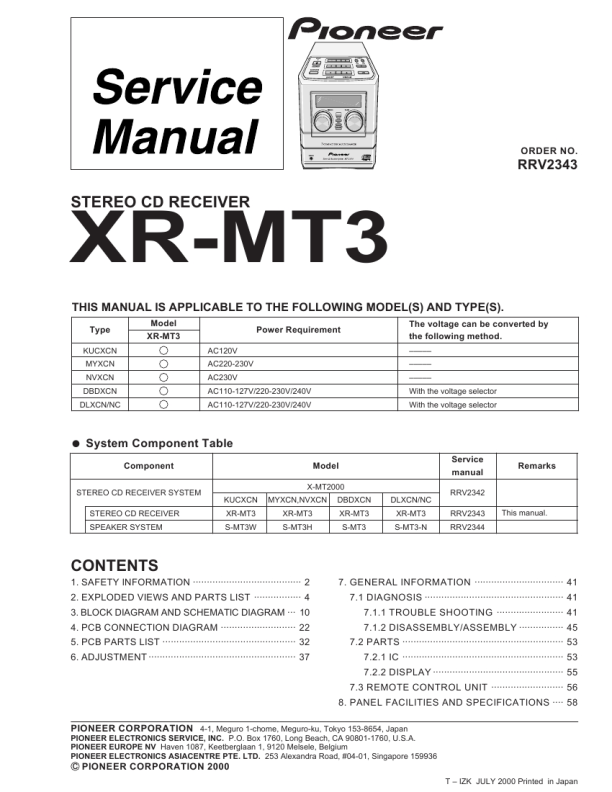

PIONEER XRMT3
Instrukcja Serwisowa

XR-MT3
� Notes of procedure 3
.

8 9
Hang Carriage only here of Pinion.

,

9

FRONT side

7
Carriage 200 is lightly lifted by the finger.

7

When Carriage 100 drops below, Carriage 200 is lightly lifted by the finger. Note : Lift it horizontally when you lift Carriage. Carriage inclines when it is not the horizontal, and mechanism locks. Bevel Gear is turned clockwise (direction of a rear side from a front side) like the state of 7 . Carriage 200 lifts up. And, when the movement is started Carriage 100 to the direction of a front side, separates the hand which lifted Carriage 200.

8 9

4

Carriage 200

10 4-1 4-2
The other side of the side applied by pushed.

Keeps turning Bevel Gear clockwise (direction of a rear side from a front side) until Carriage 100 bumps to the wall on a front side.

3

of Carriage is lightly

Puts Carriage 100 on Carriage 200 which applies by Be careful about notes by 3 at this time.

4-1 .

5

Bevel Gear is turned clockwise. (direction of a rear side from a front side)

Carriage 100

5

11

The position of a right and left, black cam is matched while confirming it from the table side of Drawer. Surface of Drawer

6

6-1 6-2 6-3

Carriage 200 moves to a front side. Bevel Gear is turned as it is clockwise. (direction of a rear side from a front side) Carriage 100 drops below. Meanwhile, Mark of right and left, black Cam is matched.

11

Cam Mark

Cam Mark

51
