Tekstowy podgląd strony 1 (kliknij aby zobaczyć)

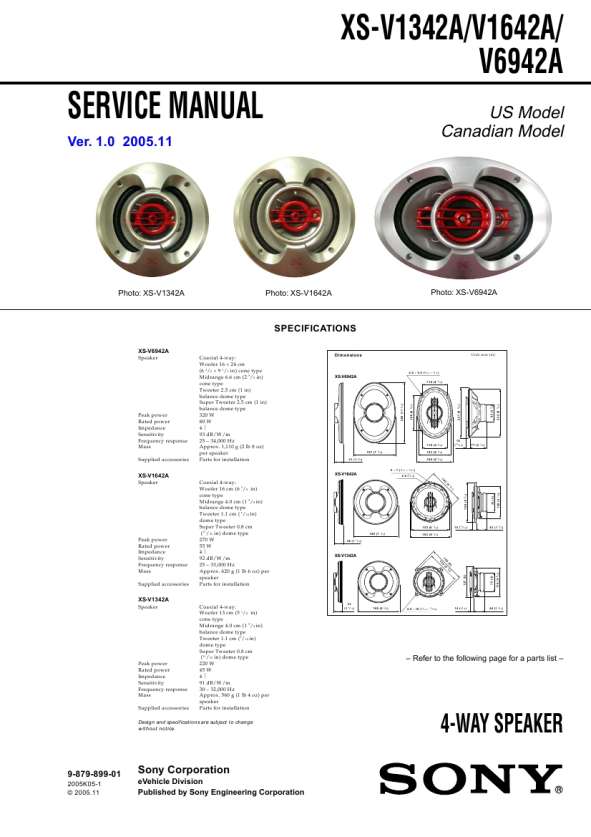

XS-V1342A/V1642A/ V6942A
SERVICE MANUAL
Ver. 1.0 2005.11
US Model Canadian Model
Photo: XS-V1342A
Photo: XS-V1642A
Photo: XS-V6942A
SPECIFICATIONS
XS-V6942A
Speaker Coaxial 4-way: Woofer 16 � 24 cm (6 3/8 � 9 1/2 in) cone type Midrange 6.6 cm (2 5/8 in) cone type Tweeter 2.5 cm (1 in) balance dome type Super Tweeter 2.5 cm (1 in) balance dome type 320 W 80 W 4� 93 dB/W/m 25 � 34,000 Hz Approx. 1,110 g (2 lb 8 oz) per speaker Parts for installation
197 (7 /8) 41 (1 5/8) 5 � 7 (7/32 � 9/32)
7
Dimensions
4.5 � 5.5 (3/16 � 7/32)
Unit: mm (in)
XS-V6942A
118 (4 3/4)
283 (11 /4)
5 1
166 (6 /8)
Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories
118 (4 3/4) 153 (6 /8) 168 (6 5/8)
1
18 (23/32)
77 (3 1/8)
XS-V1642A
Speaker Coaxial 4-way: Woofer 16 cm (6 3/8 in) cone type Midrange 4.0 cm (1 5/8 in) balance dome type Tweeter 1.1 cm ( 7/16 in) dome type Super Tweeter 0.8 cm (11/32 in) dome type 270 W 55 W 4� 92 dB/W/m 25 � 33,000 Hz Approx. 620 g (1 lb 6 oz) per speaker Parts for installation
Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories
XS-V1342A
1
127 (5) ¿ 158 (6 1 /4)
XS-V1342A
Speaker Coaxial 4-way: Woofer 13 cm (5 1/8 in) cone type Midrange 4.0 cm (1 5/8 in) balance dome type Tweeter 1.1 cm (7/16 in) dome type Super Tweeter 0.8 cm (11/32 in) dome type 220 W 45 W 4� 91 dB/W/m 30 � 32,000 Hz Approx. 560 g (1 lb 4 oz) per speaker Parts for installation
33 (1 5/16)
¿ 168 (6 5/8)
4.5 � 10 (3/16 � 13/32)
14 (9/16)
44 (1 3/4)
� Refer to the following page for a parts list �
Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories
Design and specifications are subject to change without notice.
