Instrukcja Serwisowa

XS-V160HP/V680HP/ V690HP

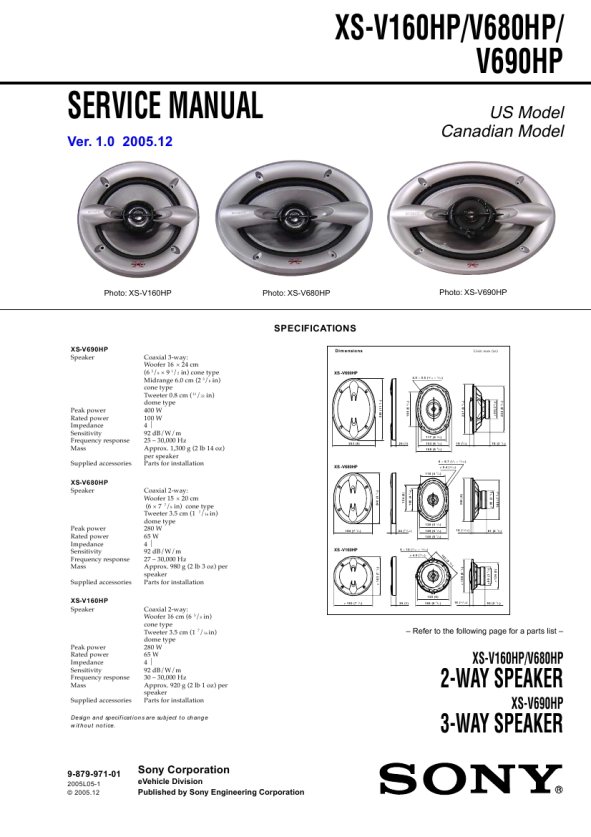

SERVICE MANUAL
Ver. 1.0 2005.12

US Model Canadian Model

Photo: XS-V160HP

Photo: XS-V680HP

Photo: XS-V690HP

SPECIFICATIONS
XS-V690HP
Speaker Coaxial 3-way: Woofer 16 � 24 cm (6 3/8 � 9 1/2 in) cone type Midrange 6.0 cm (2 3/8 in) cone type Tweeter 0.8 cm ( 11/32 in) dome type 400 W 100 W 4� 92 dB/W/m 25 � 30,000 Hz Approx. 1,300 g (2 lb 14 oz) per speaker Parts for installation
Dimensions
Unit: mm (in)

1 240 (9 /2) ø 183 (7 /4) 1 292 (11 /2)

XS -V690HP

4.5 � 5.5 ( /16 � /32)

3

7

124 (5)

Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories

166 (6 /8) 3 108 (4 /8)

5

117 (4 5/8) 203 (8) 25 (1) 153 (6 1/8) 168 (6 5/8)
( 1 4 2 ) /
1 ø 158 (6 /4) 203 (8) 3 237 (9 /8)

19 (3/4)
8 5

78 (3 1/8)

XS -V680HP

6 � 8.7 (1/4 � 11/32) ø 5.4 (7/32) 118 (4 3/4)

XS-V680HP
Speaker Coaxial 2-way: Woofer 15 � 20 cm (6 � 7 7/8 in) cone type Tweeter 3.5 cm (1 7/16 in) dome type 280 W 65 W 4� 92 dB/W/m 27 � 30,000 Hz Approx. 980 g (2 lb 3 oz) per speaker Parts for installation
3

ø 85 (3 /8)

Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories

182 (7 1/4)

24 (31/32)

128 (5 1/8) 129 (5 1/8) 146 (5 7/8)

10 (13/32)

61 (2 1/2)

XS -V160HP

5 � 10 (7/32 � 13/32) ø 4.5 (3/16)
5
ø 85 (3 /8)
3

XS-V160HP
Speaker Coaxial 2-way: Woofer 16 cm (6 3/8 in) cone type Tweeter 3.5 cm (1 7/16 in) dome type 280 W 65 W 4� 92 dB/W/m 30 � 30,000 Hz Approx. 920 g (2 lb 1 oz) per speaker Parts for installation

ø 183 (7 1/4)

25 (1)

150 (6) 166 (6 5/8 )

16 (21/32)

55 (2 1/4)

� Refer to the following page for a parts list �

Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories

XS-V160HP/V680HP

2-WAY SPEAKER
XS-V690HP

Design and specifications are subject to change without notice.

3-WAY SPEAKER

9-879-971-01
2005L05-1 © 2005.12

Sony Corporation
eVehicle Division Published by Sony Engineering Corporation

ø 126 (5) 3

185 (7 /8)

222 (8 /4)

3

ø 90 (3 /8)
