SONY XSV6941H
Instrukcja Serwisowa

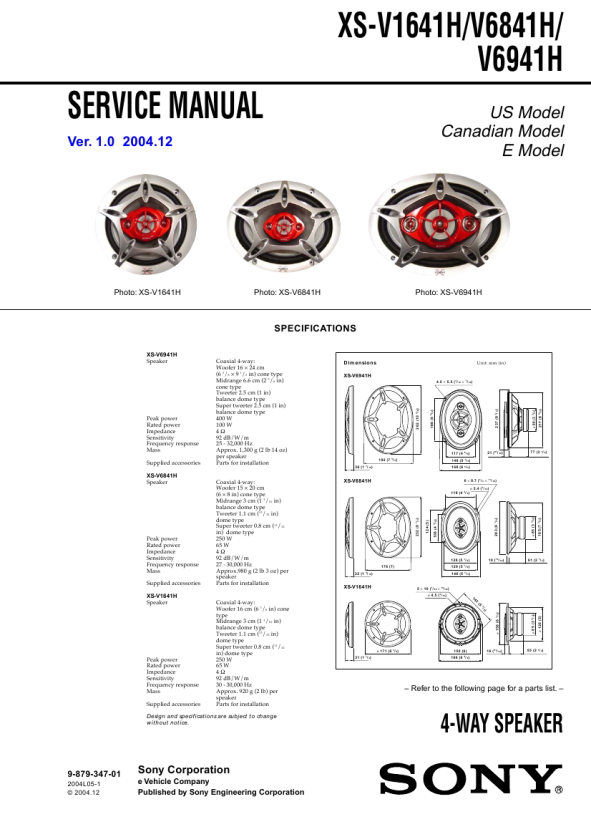

XS-V1641H/V6841H/ V6941H

SERVICE MANUAL
Ver. 1.0 2004.12

US Model Canadian Model E Model

Photo: XS-V1641H

Photo: XS-V6841H

Photo: XS-V6941H

SPECIFICATIONS
XS-V6941H Speaker

Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories XS-V6841H Speaker

Coaxial 4-way: Woofer 16 � 24 cm (6 3/8 � 9 1/2 in) cone type Midrange 6.6 cm (2 5/8 in) cone type Tweeter 2.5 cm (1 in) balance dome type Super tweeter 2.5 cm (1 in) balance dome type 400 W 100 W 4� 92 dB/W/m 25 - 32,000 Hz Approx. 1,300 g (2 lb 14 oz) per speaker Parts for installation Coaxial 4-way: Woofer 15 � 20 cm (6 � 8 in) cone type Midrange 3 cm (1 3/16 in) balance dome type Tweeter 1.1 cm (13/32 in) dome type Super tweeter 0.8 cm (11/32 in) dome type 250 W 65 W 4� 92 dB/W/m 27 - 30,000 Hz Approx.980 g (2 lb 3 oz) per speaker Parts for installation Coaxial 4-way: Woofer 16 cm (6 3/8 in) cone type Midrange 3 cm (1 3/16 in) balance dome type Tweeter 1.1 cm (13/32 in) dome type Super tweeter 0.8 cm (11/32 in) dome type 250 W 65 W 4� 92 dB/W/m 30 - 30,000 Hz Approx. 920 g (2 lb) per speaker Parts for installation

Dimensions XS-V6941H
4.5 � 5.5 (3/16 � 7/32)

Unit: mm (in)

232 (9 /4) 262 (10 /8) 124 (5)
5

166 (6 /8)

192 (7 5/8) 36 (1 7/16)

117 (4 /8) 148 (5 7/8) 168 (6 5/8)
2 ( 5
3 8

5

21 ( /32)

27

77 (3 1/8)

XS-V6841H

6 � 8.7 (1/4 � 11/32) ø 5.4 (7/32) ø 158 (6 /4)
1 1 3

) /

203 (8 237 (9 /8)

118 (4 3/4)

1 3

3

108 (4 /8)

Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories XS-V1641H Speaker

85 /8) ø 90 (3 5 /8) 128 (5 1/8) 176 (7) 32 (1 /16)
5

10 (13/32)

61 (2 1/2)

129 (5 1/8) 146 (5 /8) 5 � 10 (7/32 � 13/32) ø 4.5 (3/16)
1 4
7

XS-V1641H

ø 171 (6 3/8) 31 (1 1/4)

Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories

150 (6) 166 (6 5/8)

16 (21/32)

55 (2 1/4)

� Refer to the following page for a parts list. �

Design and specifications are subject to change without notice.

4-WAY SPEAKER

9-879-347-01
2004L05-1 © 2004.12

Sony Corporation
e Vehicle Company Published by Sony Engineering Corporation

3

185 (7 5 ø 126 (5) 217 (8 /8)
