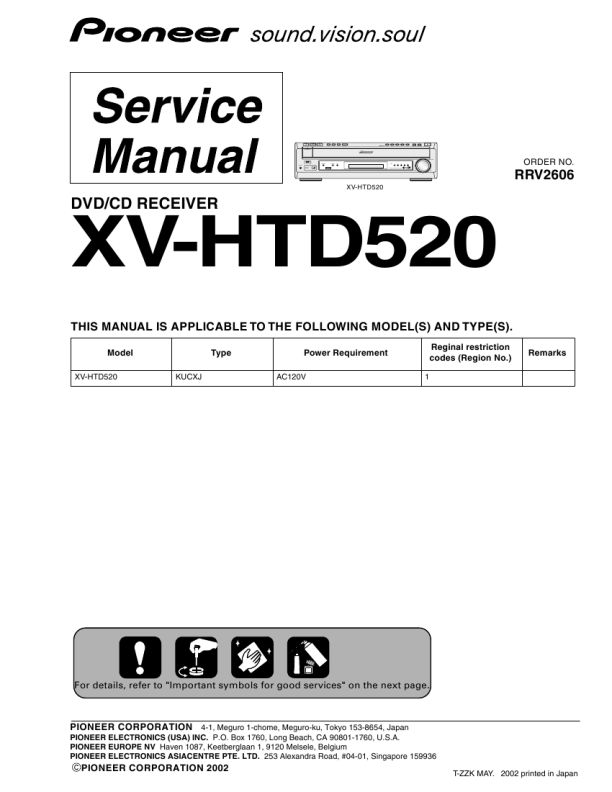

PIONEER XV-HTD520/KUCXJ
Instrukcja Serwisowa

5

6

7

8

TRAVERSE MECHANISM ASSY-S Disassembly 1 2
Remove the Bonnet (Screws � 11) Remove the Tray Cap Remove the Front Panel Section (Refer to " FRONT PANEL SECTION")
A

8
Unhook
CN12

9 7

TRSB Assy

9
Unhook

B

3 4 5 6 7 8 9
10

Power ON Tray Open (0 OPEN/CLOSE) Pull out the power cord from the outlet. Push the Tray by hand. (about 5 cm) Bring an extra flexible cable close to the rear side. Disconnect the flexible cable. Note : The Traverse mechanism being an unclamp (=down) state.
C

Unhook � 2 Pull out the tray while pressing the two hooks ( 9 ).

10

6
Tray Section
D

When Tray Cannot Pull Out
Tray cannot pull out that is not at a position of home position. (When two hooks ( 9 ) hide under the Rotary Tray and can not pull out the tray.) In that case, set the tray in the following procedures. 1 Remove

3

Tighten

E

Note : Do not need to match with Disc No. (1 to 5) when returns the tray. Detect it automatically.

Rotary Tray

2

Set the tray to the position that can see a hole of the center.

F

XV-HTD520
5 6 7 8

95
