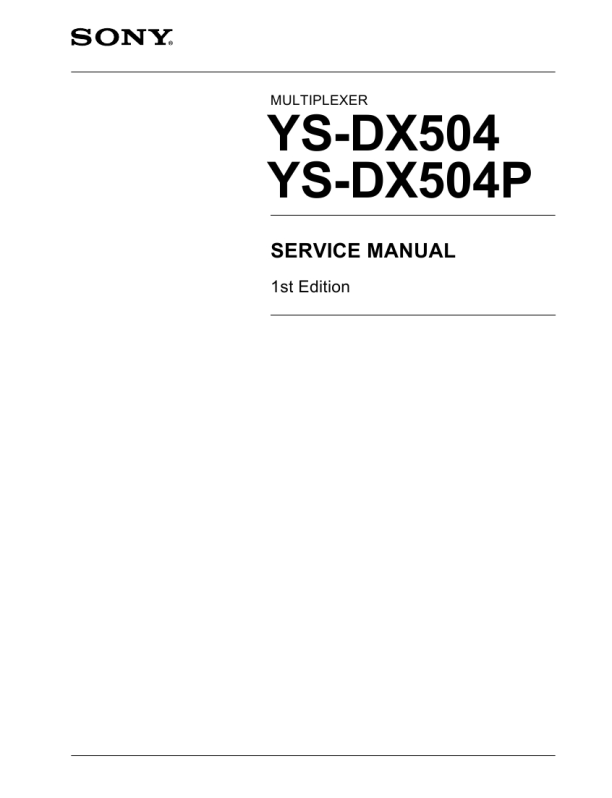

SONY YS-DX504P
Instrukcja Serwisowa

1-20 YS-DX504/DX504P (E)
Menu Setting Mode
MONITOR SET
You can set the monitor switching speed or set monitor 2 to display the monitor 1 image. Changing the monitor setting (MOITOR SET) menu MON1 SEQ. TIMER Sets the screen automatic switching speed. Automatic switching speed (seconds): 01 (default), 02, 03, 04, 05, 10, 20, 30 MON2 SEQ. TIMER Sets the screen automatic switching speed. Automatic switching speed (seconds): 01 (default), 02, 03, 04, 05, 10, 20, 30 MON2 T MON1 Y: Monitor 2 displays the monitor 1 image (4 divisions split screen, automatic switching, full screen). N (Default): Monitor 2 displays live images (automatically switched) or a full screen image.

2

Press the + (or �) button and change the VCR type. Press the v button. Similarly, change �REC SPEED�, �ALARM REC SPEED� and �COLOR KILLER� (YS-DX504 only).

Note

1

Press the MENU button 7 times. Press v the button. The (MONITOR SET) menu appears. If the system is in the �POSITON SET� mode, press the NEXT button to return to the (DISPLAY SET) menu.

YS-DX504: The real time VCR speed is based on a T160 tape. If you set the �REC SPEED� to 006, 018 or 030, the real time VCR recording speed will be as shown in Table 1. YS-DX504P: The real time VCR speed is based on a E-240 tape. If you set the �REC SPEED� to 006, 018 or 030, the real time VCR recording speed will be as shown in Table 1. Table 1
REC SPEED 006 (6H) 018 (18H) 030 (30H) Real time VCR recording time 8H (8-hour mode) 24H (24-hour mode) 40H (40-hour mode)

YS-DX504

YS-DX504P

YS-DX504

YS-DX504P

VCR Signal Input/Output and Computer Control Setting � Menu 8
VCR SET
Changing the VCR setting.

3

Press the MENU button to go to the next menu screen, or press the EXIT button to exit.

(VCR SET) menu s If the VCR is not equipped with a SW output connector. s VCR MODE TLS (Default): Time lapse VCR REAL: Real time VCR REC SPEED YS-DX504: The recording speed is calculated assuming a T-120 tape is used. YS-DX504P: The recording speed is calculated assuming a E-180 tape is used. [Time lapse VCR]
YS-DX504 YS-DX504P

1 2 3
Press the v button until the cursor moves to the �MON1 SEQ. TIMER�. Press the + (or �) button and change the �MON1 SEQ. TIMER�. Press the v button. Similarly change �MON2 SEQ. TIMER� and �MON2 T MON1�.

Press the MENU button 8 times. The (VCR SET) menu appears.

ALARM REC SPEED [Time lapse VCR] Set the recording speed if the system receives an alarm signal. Set �ALARM REC SPEED� for the connected VCR. Speed YS-DX504: 002 (default), 012, 024, NC, F2 YS-DX504P: 003 (default), 012, 024, NC, F3 NC: Records the image at REC SPEED even if the system receives an alarm signal. F2 (YS-DX504): If the VCR�s SW signal terminal is used, it will record the image at 2H speed for VCRs that do not output switch signals. F3 (YS-DX504P): If the VCR�s SW signal terminal is used, it will record the image at 3H speed for VCRs that do not output switch signals. [Real time VCR] Set the recording speed if the system receives an alarm signal. Set �ALARM REC SPEED� for the connected VCR. Speed: 006 (default), 018, NC, F6 NC: Records the image at REC SPEED even if the system receives an alarm signal. F6: If the VCR�s SW signal terminal is used, it will record the image with the 6H speed for VCRs that do not output switch signals.

4

Press the MENU button to go to the next menu screen, or press the EXIT button to exit.

Set the speed for the connected VCR. Speed (hours) YS-DX504: 002 (Default: 2 hours), 012, 024, 048, 072, 096, 120, 168, 240, 360, 480, 720, 960 YS-DX504P: 003 (Default: 3 hours), 012, 024, 048, 072, 096, 120, 168, 240, 360, 480, 720, 960 [Real time VCR] Set the speed for the connected VCR. Speed (hours): 006 (Default: 6 hours), 018, 030, 048, 072, 096, 120, 168, 240, 360, 480, 720, 960

38 (GB)

39 (GB)
