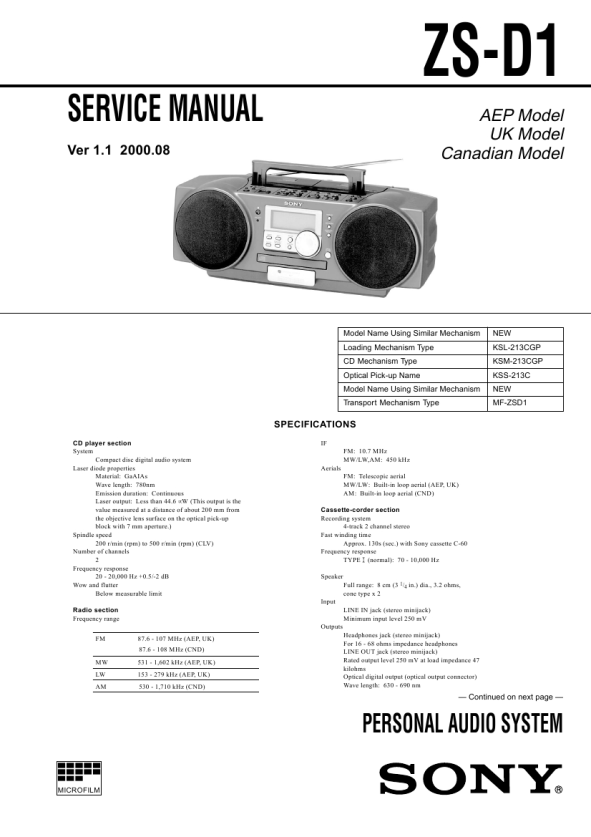

SONY ZSD1
Instrukcja Serwisowa

Ver 1.1 2000.08

7-3.

UPPER CABINET SECTION

Ref. No. 101 102 103 104 105 106 107 108 108 109 110 * 111

Part No. X-3372-903-1 X-3372-904-1 3-939-032-01 3-939-033-01 3-939-031-01 3-939-030-01 3-351-377-31 X-3373-690-1 X-3373-692-1 3-939-038-01

Description CASSETTE HOLDER (A) ASSY CASSETTE HOLDER (B) ASSY SPRING (A), CASSETTE UP SPRING (B), CASSETTE UP SPRING, PUSH CATCHER RETURN

Remarks

Ref. No. * 111 112 113 * 114 * 114 * 115 * 115 116 * 117 * 117 118 ANT2 ND451

Part No. A-3306-457-A 3-939-028-01 3-939-029-01 A-3306-447-A A-3306-458-A 1-662-762-13 1-662-762-21 1-777-641-11 A-3293-409-A A-3293-412-A

Description

Remarks

CONTROL BOARD, COMPLETE (AEP,UK,IT) HOLDER, LCD ILLUMINATOR LCD BOARD, COMPLETE (CND) LCD BOARD, COMPLETE (AEP,UK,IT) LAMP BOARD (CND) LAMP BOARD (AEP,UK,IT) WIRE, PARALLEL (FFC) (8 CORE) MAIN BOARD, COMPLETE (CND) MAIN BOARD, COMPLETE (AEP,UK,IT)

CATCHER, PUSH DAMPER CABINET (UPPER) SUB ASSY (CND) CABINET (UPPER) SUB ASSY (AEP,UK,IT) GEAR, HANDLE

1-777-640-11 WIRE, PARALLEL (FFC) (12 CORE) A-3306-446-A CONTROL BOARD, COMPLETE (CND)

3-939-034-01 TERMINAL, ANTENNA 1-501-861-11 ANTENNA, TELESCOPIC 1-801-465-11 DISPLAY PANEL, LIQUID CRYSTAL
