CHAPTER 3 MECHANICAL SYSTEMS
3.4.2 Correcting the Skew Caused by the Pickup Unit
If images on copies are askew, make adjustments shown in 1.1.1 �Adjusting the Original Leading Edge Stop Position� in Chapter 5; if the skew is not corrected, perform the following: 1) Loosen the five fixing screws of the pickup unit. (For the position of the fixing screw, see 3.4.1.) 2) Move the pickup unit to the left and the right as shown. 3) When this adjustment is done, adjust the original leading edge stop position. (See 1.1.1 of Chapter 5.)
F03-304-05
3.4.3 Removing the Delivery Unit
When detaching the delivery unit, be sure to indicate its position by marking the fixing screw. If displaced, it can cause paper to move askew. 1) Remove the machine cover. (See 1.1.3.) 2) Disconnect the two connectors [1]. 3) Free the harness [3] from the harness stop [2].
[1] [2] [3]
[1]
F03-304-06

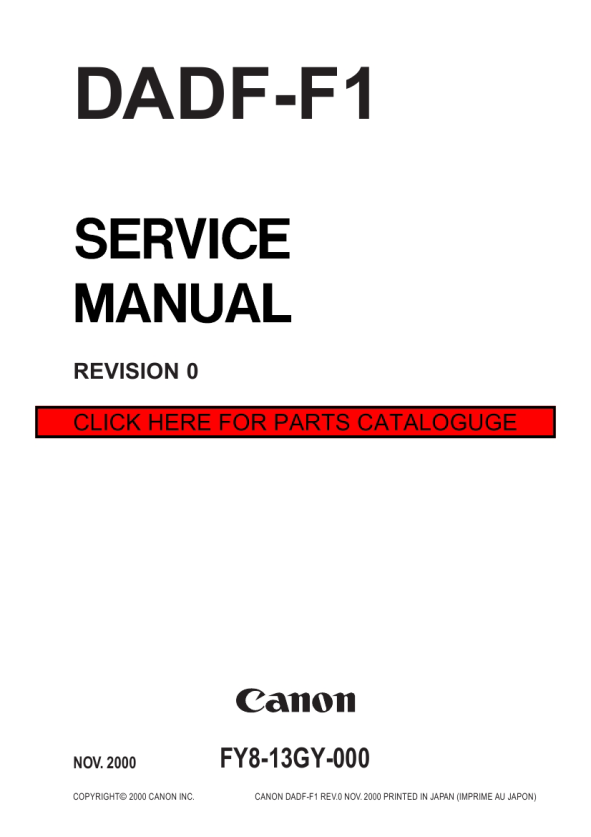

COPYRIGHT© 2000 CANON INC. 2000 2000 2000 CANON DADF-F1 REV.0 NOV. 2000
3-23
|
