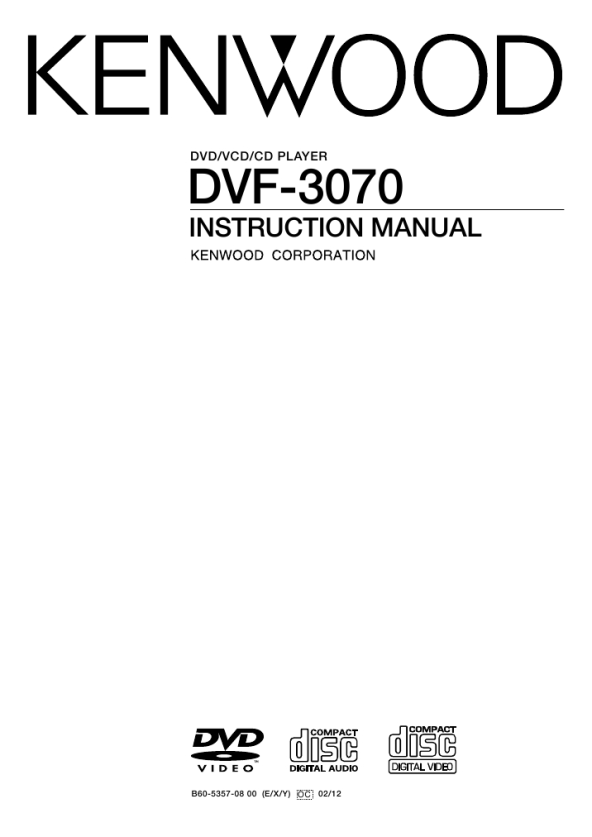

KENWOOD DVF-3070
Instrukcja Obsługi

Set Up functions
DVF-3070 (EN/E,T,X,Y)

15

AUDIO SETUP AUDIO OUT
This selects the format of the audio output from the DIGITAL OUT terminal.

SPDIF/RAW
Choose this when connecting to an amplifier with built-in Dolby digital or DTS decoder. When a DVD recorded with Dolby digital or DTS is played back, a bitstream signal will be put out. When a disc recorded with linear PCM is played back, a linear PCM signal will be put out.

SPDIF/PCM
Choose this for PCM output. When a DVD recorded with Dolby digital is played back, output will be made converted to 2-channel PCM. In case of a DVD recorded with DTS, output will be made as bitstream.

Preparations

LPCM OUTPUT
This selects the clock frequency for linear PCM output.

LPCM 48k
Sets the linear PCM output to 48 kHz. Even in case of 96 kHz digital signal, DVD will deliver 48 kHz signal out.

LPCM 96k
In case of 96 kHz digital signal, DVD will deliver 96 kHz signal out. In this case your receiver should control 96 kHz signal. Depending on the disc, output of a 96 kHz signal may be prohibited. In such a case, the output will be converted down to a 48 kHz signal.

DYNAMIC
At the time of Dolby digital DVD playback, the differece of the maximum volume and the minimun volume are compressed. Adjustment is possible in 8 steps, and the range is largest (compression ratio 0) at the time of "OFF" and smallest (large compression ratio) at the time of "FULL". ( OFF )

PREFERENCES VIDEO OUTPUT
Choose "S-VIDEO" in case of connection to the S-VIDEO terminals on the rear, choose "RGB" in case of connection to the AV terminal or choose "COMPONENT" in case of connection to COMPONENT terminal. Output will not be made to the not selected terminals. (0!) ( S-VIDEO )

AUDIO
Choose the language for the AUDIO output. ( ENGLISH *)

SUB TITLE
Choose the language for SUB TITLE. ( ENGLISH *)

DISC MENU
Choose the language for the menu recorded on the DISC. ( ENGLISH *)

PARENTAL
This can restrict playback of adult-oriented DVD discs that you do not want to be seen by children. However, even when a DVD disc is marked "Adult-oriented" or so on the label, its viewing cannot be restricted unless the restriction level is recorded in the disc itself. ( 8 ) Parental lock level; Level 8: All DVDs can be played back.(Factory preset) Level 7 to 2: DVDs for general audiences/children can be played back. (DVDs for adults are prohibited.) Level 1: DVDs for children can be played back. (DVDs for adults/general audiences are prohibited.)

PASSWORD
The password for PARENTAL setting, change, cancellation, etc. is set.

DEFAULTS
This resets all settings, except for PARENTAL and PASSWORD, to the factory defaults.

When the language marked with an asterisk (*) is specified by the disc, that specification has priority.
