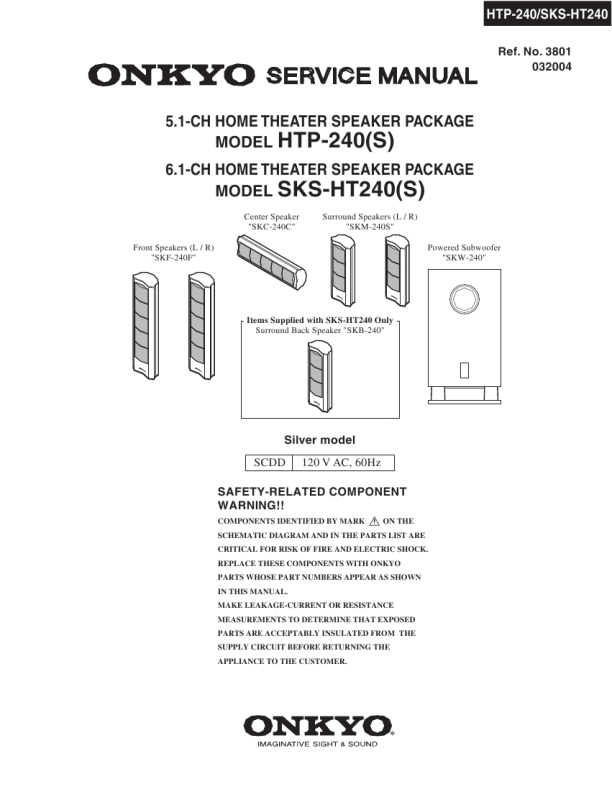

ONKYO HTP240
Instrukcja Serwisowa

HTP-240/SKS-HT240 SPECIFICATIONS

Powered Subwoofer (SKW-240)
Type : Bass reflex with built-in power amplifier Input sensitivity/impedance : 220 mV / 15 k ohm Maximum output power : 150 W Dynamic Frequency response : 27 Hz - 150 Hz SN ratio : 70 dB Cabinet capacity : 38.5 L Dimensions (W x H x D) : 10-13/16" x 20-3/8" x 16-3/16" (275 x 518 x 411 mm) Weight : 30.9 lbs. (14 kg) Drive unit : 8" cone woofer Power supply : AC 120 V, 60 Hz Power consumption : 75 W Other : Auto Standby function

Center Speaker (SKC-240C)
Type : 2-way bass reflex center speaker Impedance : 8 ohm Maximum input power : 100 W Output sound pressure level : 82 dB/W/m Frequency response : 65 Hz - 35 kHz Crossover frequency : 5 kHz Cabinet capacity : 2.6 L Dimensions (W x H x D) : 17-5/16" x 5-1/8" x 3-9/16" (439 x 130 x 91 mm) Weight : 5.1 lbs. (2.3 kg) Speaker : 3-1/8" cone woofer x 2 1" balanced-dome tweeter Other : Magnetic shielding

Front Speaker (SKF-240F)
Type : 2-way bass reflex front speaker Impedance : 8 ohm Maximum input power : 100 W Output sound pressure level : 82 dB/W/m Frequency response : 55 Hz - 35 kHz Crossover frequency : 5 kHz Cabinet capacity : 3L Dimensions (W x H x D) : 5-1/8" x 19-11/16" x 3-9/16" (130 x 500 x 91 mm) Weight : 5.5 lbs. (2.5 kg) Drive unit : 3-1/8" cone woofer x 2 1" balanced-dome tweeter Other : Magnetic shielding

Surround Speaker (SKM-240S/SKB-240)
Type : 2-way bass reflex surround/surround back speaker Impedance : 8 ohm Maximum input power : 100 W Output sound pressure level : 80 dB/W/m Frequency response : 65 Hz - 35 kHz Crossover frequency : 6.5 kHz Cabinet capacity : 2L Dimensions (W x H x D) : 5-1/8" x 13-3/8" x 3-9/16" (130 x 340 x 91 mm) Weight : 3.5 lbs. (1.6 kg) Speaker : 3-1/8" cone woofer 1" balanced-dome tweeter Other : Magnetic shielding

Specifications and appearance are subject to change without prior notice.
