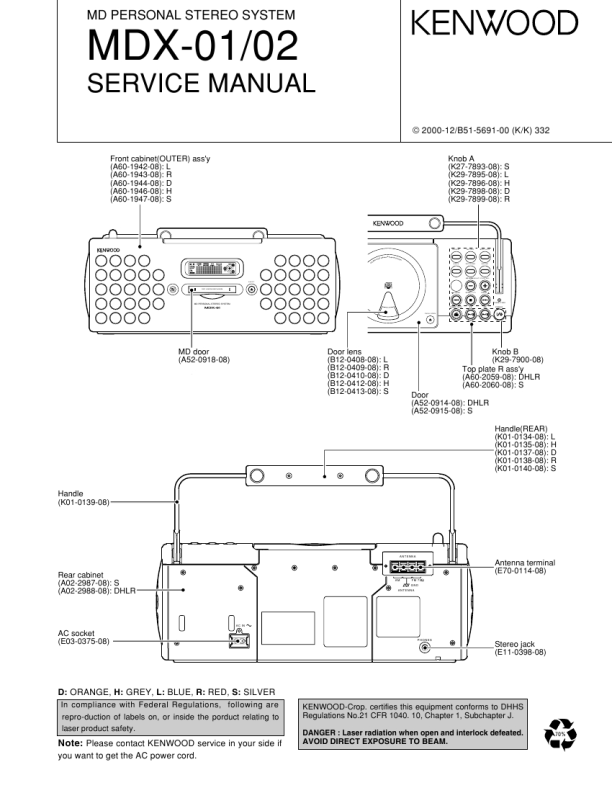

MDX-01/02
DISASSEMBLY FOR REPAIR
5 x2

1. How to Remove Front Cabinet
1. Remove 6 screws(1) from the rear cabinet side. 2. Remove 2 screws(2) fixed CD and the front cabinet. 3. Remove 3 screws(3) from the bottom front side. 4. Move the front cabinet frontwards(4).

6 x2 6 x2 2 2 4

2. How to Remove CD and Top Covers
1. Remove 2 screws fixed CD and top covers(5). 2. Remove 8 screws fixed the carrying handle (6x4) and the rear cabinet(7x4). 3. Turn the antenna cap(8) to remove and lift the carrying handle and CD mechanism(9).
1 7 x1 1 1 8

10 x1

7 x2 7 x1

1

1

1 3 x3

3. How to Remove MD Mechanism
1. Remove the screw(0) fixed the AC inlet socket. 2. Remove 5 screws fixed the bottom cabinet(!x3) and the power transformer(@x2). 3. Move the main pcb frontwards(#). 4. Remove 3 screws($) fixed the MD mechanism.

9

11 11 11

13 14 x3 12 12

3
