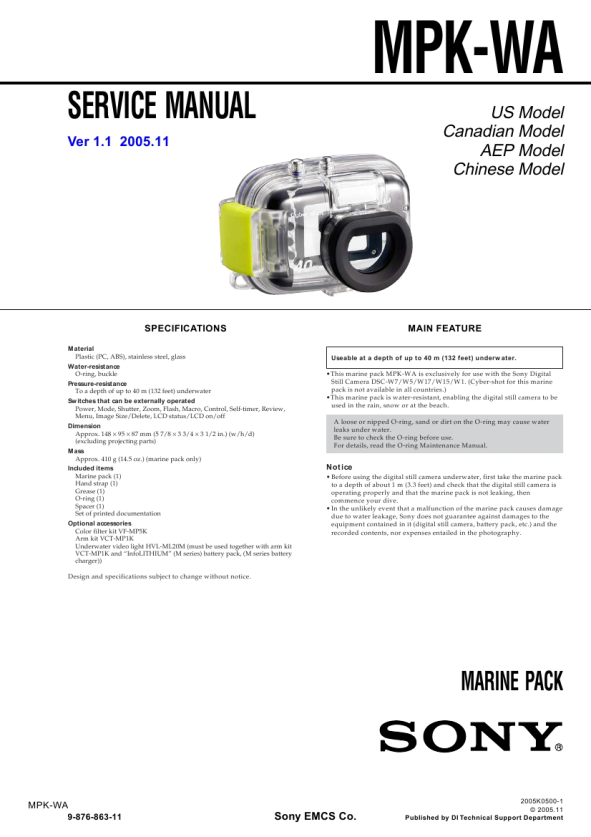

MPK-WA
SERVICE MANUAL
Ver 1.1 2005.11
US Model Canadian Model AEP Model Chinese Model
SPECIFICATIONS
Material Plastic (PC, ABS), stainless steel, glass Water-resistance O-ring, buckle Pressure-resistance To a depth of up to 40 m (132 feet) underwater Switches that can be externally operated Power, Mode, Shutter, Zoom, Flash, Macro, Control, Self-timer, Review, Menu, Image Size/Delete, LCD status/LCD on/off Dimension Approx. 148 � 95 � 87 mm (5 7/8 � 3 3/4 � 3 1/2 in.) (w/h/d) (excluding projecting parts) Mass Approx. 410 g (14.5 oz.) (marine pack only) Included items Marine pack (1) Hand strap (1) Grease (1) O-ring (1) Spacer (1) Set of printed documentation Optional accessories Color filter kit VF-MP5K Arm kit VCT-MP1K Underwater video light HVL-ML20M (must be used together with arm kit VCT-MP1K and �InfoLITHIUM� (M series) battery pack, (M series battery charger))
MAIN FEATURE
Useable at a depth of up to 40 m (132 feet) underwater. �This marine pack MPK-WA is exclusively for use with the Sony Digital Still Camera DSC-W7/W5/W17/W15/W1. (Cyber-shot for this marine pack is not available in all countries.) �This marine pack is water-resistant, enabling the digital still camera to be used in the rain, snow or at the beach. A loose or nipped O-ring, sand or dirt on the O-ring may cause water leaks under water. Be sure to check the O-ring before use. For details, read the O-ring Maintenance Manual.
Notice
�Before using the digital still camera underwater, first take the marine pack to a depth of about 1 m (3.3 feet) and check that the digital still camera is operating properly and that the marine pack is not leaking, then commence your dive. �In the unlikely event that a malfunction of the marine pack causes damage due to water leakage, Sony does not guarantee against damages to the equipment contained in it (digital still camera, battery pack, etc.) and the recorded contents, nor expenses entailed in the photography.
Design and specifications subject to change without notice.
MARINE PACK
MPK-WA
9-876-863-11
2005K0500-1 © 2005.11
Sony EMCS Co.
Published by DI Technical Support Department
|
