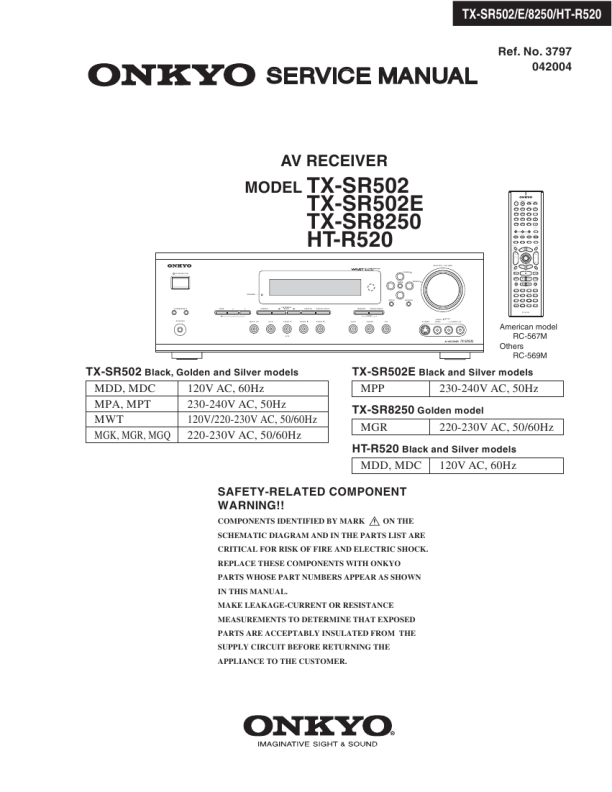

ONKYO TXSR502
Instrukcja Serwisowa

TX-SR502/E/8250/HT-R520 REMOTE CONTROLLERS-2
RC-567M/569M/570M
1 STANDBY button
This button is used to set the unit to Standby.

[ DSP] & [DSP ] buttons
These buttons are used to select the Onkyo original DSP (digital signal processor) listening modes.

2 ON button
This button is used to turn on the unit.

13 TEST TONE, CH SEL, LEVEL- & LEVEL+ buttons
These buttons are used to adjust the level of each speaker individually.

3 Input selector buttons
These buttons are used to select the input sources.

4 MULTI CH button
This button is used to select the multichannel DVD input.

14 L NIGHT button
This button is used to set the Late Night function.

5 TONE, [-] & [+] buttons
These buttons are used to adjust the bass and treble.

15 REMOTE MODE buttons
These buttons are used to select the remote controller modes. When you use the remote controller, the mode button for the currently selected mode lights up.

6 DIMMER button
This button is used to adjust the display brightness.

16 SLEEP button
This button is used to set the Sleep function.

7 Arrow [ ]/[ ]/[ ]/[ ] & ENTER button
This button is used to select and adjust settings.

17 VOL button
This button is used to set the volume of the unit.

8 CH +/- button
This button is used to select radio presets.

18 SETUP button
This button is used to access various settings.

9 RETURN button
This button is used to return to the previous screen when changing settings.

19 MUTING button
This button is used to mute the unit.

10 DISPLAY button
This button is used to display various information about the currently selected input source.

20 CINE FLTR button
This button is used to set the CinemaFILTER function.

11 SP A & SP B buttons
These buttons are used to turn on and off speaker sets A and B.

12 Listening mode buttons

SURR button
This button is used to select the Dolby and DTS listening modes.

ALL ST button
This button is used to select the All Ch Stereo listening mode.

STEREO button
This button is used to select the Stereo listening mode.

PURE A button (not American model)
This button is used to select the Pure Audio listening mode. In this mode, the display and internal video circuitry are turned off, minimizing the possibility of interference, for a high fidelity sound that's true to the original. (No video signals are output in this mode.)

DIRECT button
This button is used to select the Direct listening mode.
