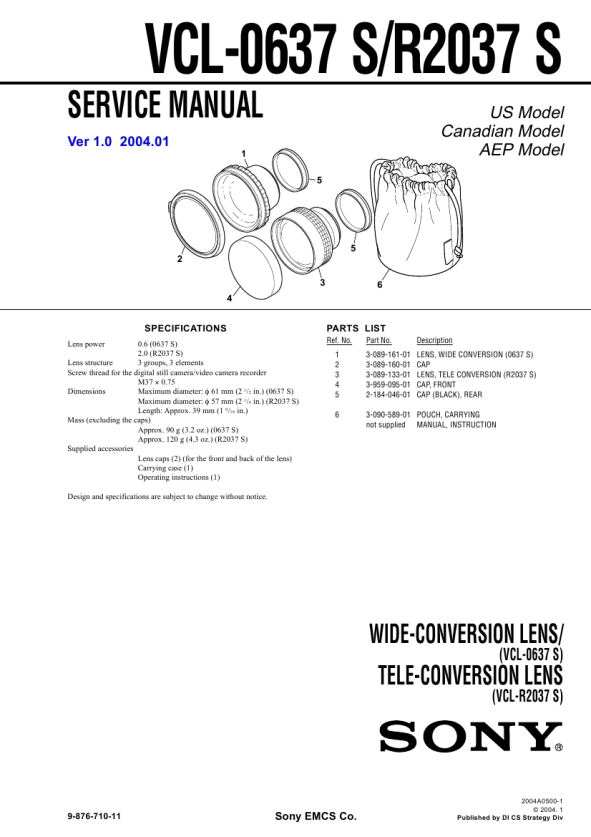

VCL-0637 S/R2037 S
SERVICE MANUAL
Ver 1.0 2004.01
1 5
US Model Canadian Model AEP Model
5 2 3 4
SPECIFICATIONS
Lens power 0.6 (0637 S) 2.0 (R2037 S) Lens structure 3 groups, 3 elements Screw thread for the digital still camera/video camera recorder M37 � 0.75 Dimensions Maximum diameter: � 61 mm (2 1/2 in.) (0637 S) Maximum diameter: � 57 mm (2 1/4 in.) (R2037 S) Length: Approx. 39 mm (1 9/16 in.) Mass (excluding the caps) Approx. 90 g (3.2 oz.) (0637 S) Approx. 120 g (4.3 oz.) (R2037 S) Supplied accessories Lens caps (2) (for the front and back of the lens) Carrying case (1) Operating instructions (1) Design and specifications are subject to change without notice.
6
PARTS LIST
Ref. No. 1 2 3 4 5 6 Part No. 3-089-161-01 3-089-160-01 3-089-133-01 3-959-095-01 2-184-046-01 Description LENS, WIDE CONVERSION (0637 S) CAP LENS, TELE CONVERSION (R2037 S) CAP, FRONT CAP (BLACK), REAR
3-090-589-01 POUCH, CARRYING not supplied MANUAL, INSTRUCTION
